Coronary
Solutions

Nventric develops innovative coronary devices designed to support physicians in the treatment of coronary artery disease through precision engineering, advanced technology, and reliable clinical performance.

Our coronary device development partnerships focus on creating innovative solutions to treat coronary artery disease and improve patient outcomes. Through advanced technologies, we design and develop devices that empower physicians to address complex coronary conditions with precision and reliability.

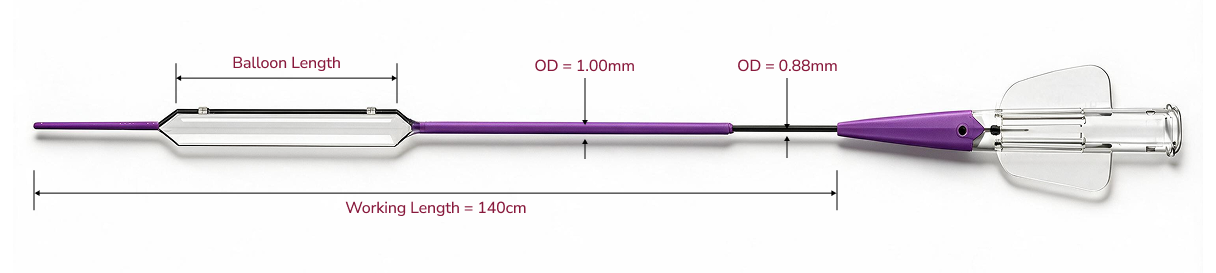

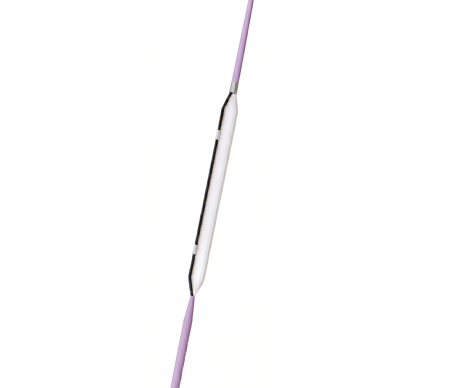

EXPANDRA ®

Scoring Balloon Catheter

The EXPANDRA ® Scoring Balloon Catheter features a unique scoring wire design that delivers precise, controlled dilation of narrowed arteries. Its non-compliant balloon and lubricious hydrophilic coating ensure accurate deployment and exceptional trackability, making it an ideal choice for challenging lesion preparation.

Key Benefits

Scoring wire design optimizes crossing profile
Excellent delivery enhanced by a lubricious hydrophilic coating
Non-compliant balloon for accurate dilation and safety
Precise and controlled expansion of narrowed arteries
12 ATM Nominal Pressure
22 ATM Rated Burst Pressure

SIZE INFORMATION

Product Code: EXP-Diameter-Length (Example: EXP-1.5-8)


          Balloon Diameter (mm)
          1.5
          1.75
          2
          2.25
          2.5
          2.75
          3
          3.25
          3.5
          3.75
          4

          Balloon Length (mm)

            8 / 10 / 12 / 15 / 18 / 20 / 25

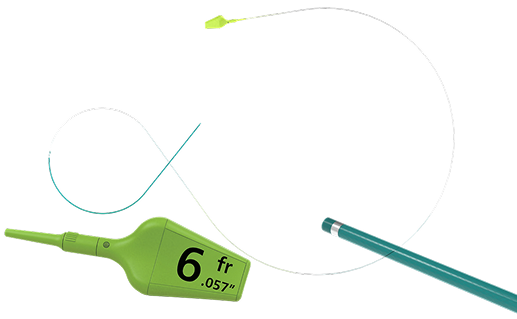

AGILARON ®

Guide Extension Catheter

The AGILARON ® Guide Extension Catheter is designed to provide enhanced backup support and deep-seated access during complex coronary and peripheral interventions. Its hydrophilic coating and radiopaque laser-cut collar ensure smooth delivery and precise positioning, while the hypotube transition minimizes device obstruction for optimal procedural outcomes.

Design Features

Hydrophilic coating for optimal delivery
Radiopaque laser cut collar
Hypotube transition with minimal device obstruction

Key Benefits

Enhanced stability and support for coronary procedures.
Improved catheter tracking and maneuverability.
Greater control during complex interventions.



          Product Code
          Fr Size
          Guide Length
          Inner Diameter
          Outer Diameter



          AGL5-25
          5Fr
          25cm
          1.17mm
          1.35mm


          AGL5-40
          5Fr
          40cm
          1.17mm
          1.35mm


          AGL5.5-25
          5.5Fr
          25cm
          1.30mm
          1.60mm


          AGL5.5-40
          5.5Fr
          40cm
          1.30mm
          1.60mm


          AGL6-25
          6Fr
          25cm
          1.45mm
          1.70mm


          AGL6-40
          6Fr
          40cm
          1.45mm
          1.70mm





Product Code	Fr Size	Guide Length	Inner Diameter	Outer Diameter
AGL5-25	5Fr	25cm	1.17mm	1.35mm
AGL5-40	5Fr	40cm	1.17mm	1.35mm
AGL5.5-25	5.5Fr	25cm	1.30mm	1.60mm
AGL5.5-40	5.5Fr	40cm	1.30mm	1.60mm
AGL6-25	6Fr	25cm	1.45mm	1.70mm
AGL6-40	6Fr	40cm	1.45mm	1.70mm

Drug Eluting Stent

IN DEVELOPMENT

Drug Coated Balloon

IN DEVELOPMENT

Why Choose Our
Coronary Solutions

Precision Engineering

Designed for predictable and reliable procedural performance.

Advanced Device Technology

Innovative solutions developed to address complex coronary challenges.

Enhanced Procedural Control

Supporting physicians with greater accuracy and confidence.

Quality Manufacturing

Developed using internationally recognized quality standards.
